Monitoring Instruments and Software

Geotechnical and Structural Monitoring Instruments

Instruments for displacement, tilt, cracks, rainfall, soil moisture and blast vibration, with data loggers and software for a complete monitoring system.

Contact us

Deformation

In-place sensor strings and inclinometers for lateral displacement, settlement and convergence below ground or along a structure.

RT-1010 Array Displacement Meter with stainless-steel sensor segments and flexible joints

Model RT-1010

Array Displacement Meter

A MEMS in-place inclinometer string for displacement, settlement and convergence profiles. Options add groundwater level, water temperature and settlement measurements in the same borehole.

  • Rigid segments and flexible joints
  • Groundwater and settlement options
View product

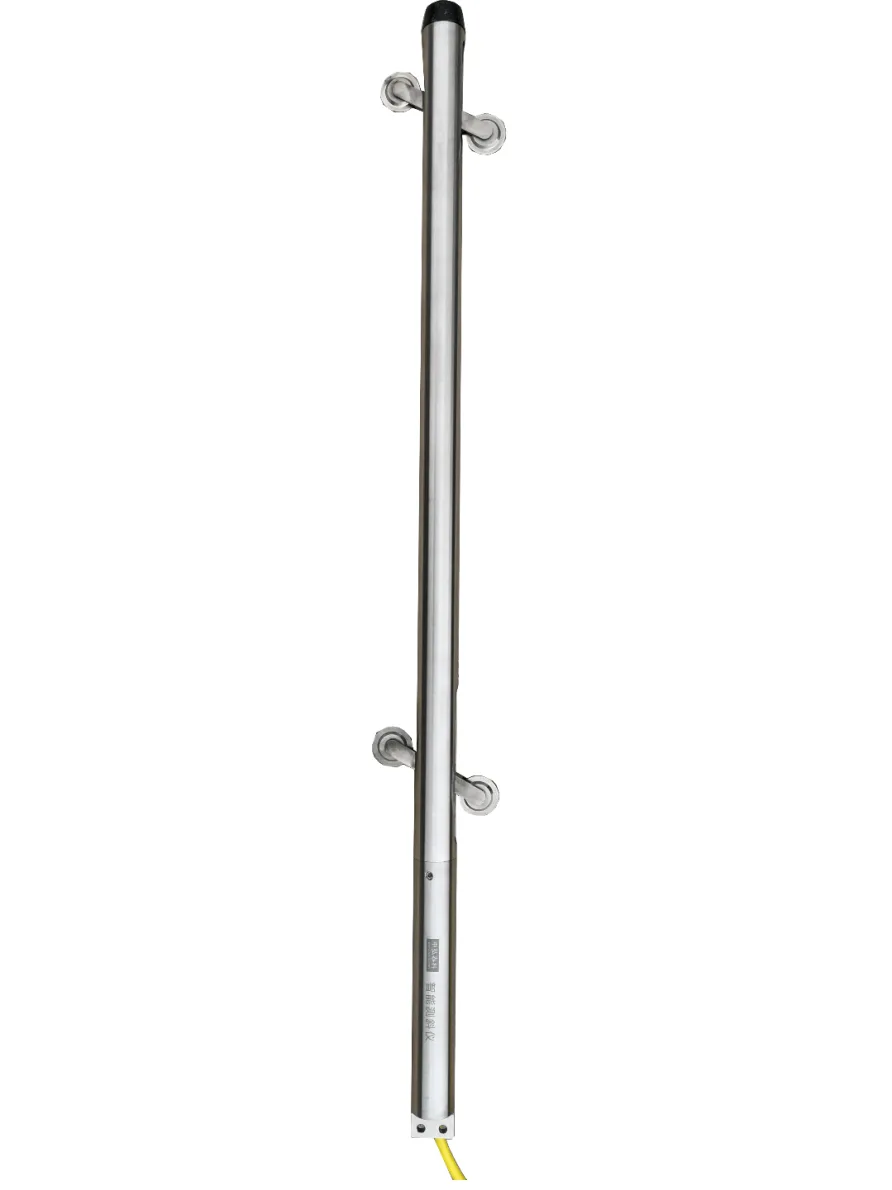

RT-1020 inclinometer with positioning components

Model RT-1020

In-Place Inclinometer

Fixed-depth tilt measurements for calculating borehole displacement relative to an initial reference.

  • Fixed-depth monitoring
  • RS485 system integration
View product

Tilt Monitoring

Wired and wireless tilt measurements for ground and structural monitoring, with power and communications suited to the site.

RT-1070 compact wireless tiltmeter with a white dome-shaped housing

Model RT-1070

Wireless Tiltmeter

A compact, self-contained tiltmeter with an internal battery and 4G connection for distributed monitoring sites.

  • Scheduled acquisition
  • Threshold-triggered reporting
View product

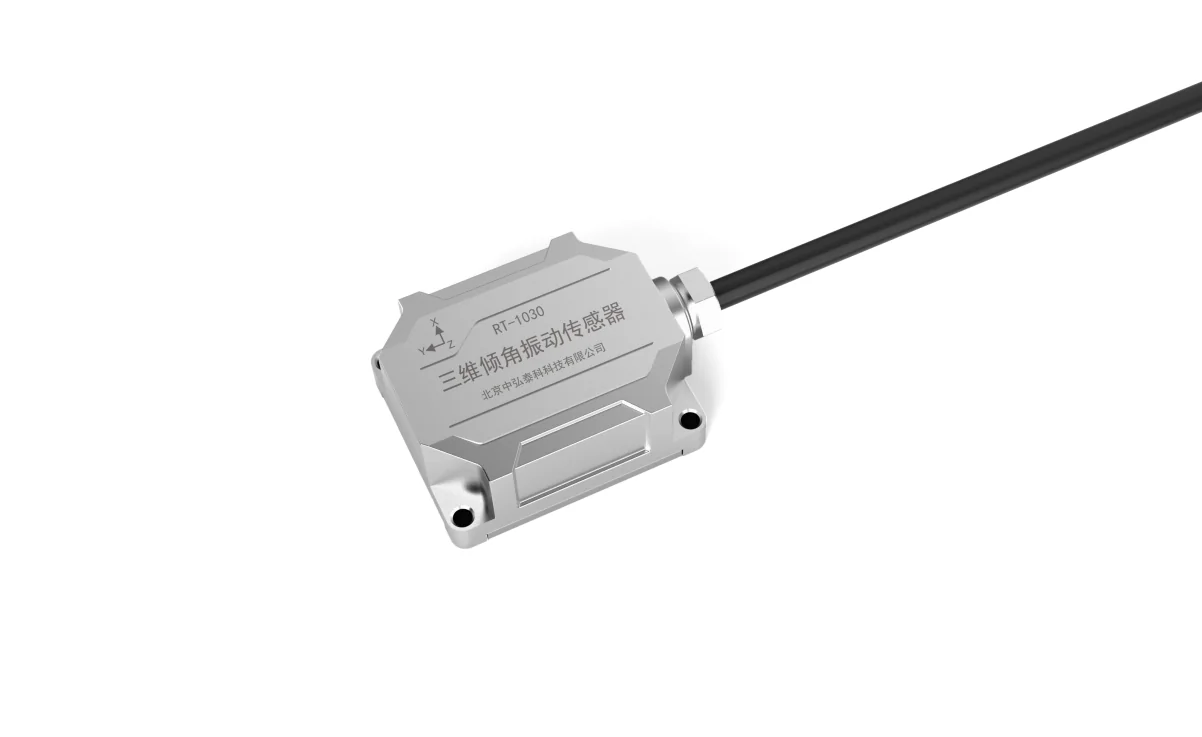

RT-1030 sensor with an aluminum housing and signal cable

Model RT-1030

3D Tilt & Vibration Sensor

Structural tilt and vibration measurements, with selectable tilt or acceleration output modes.

  • Selectable tilt or acceleration output
  • Polling or active reporting
View product

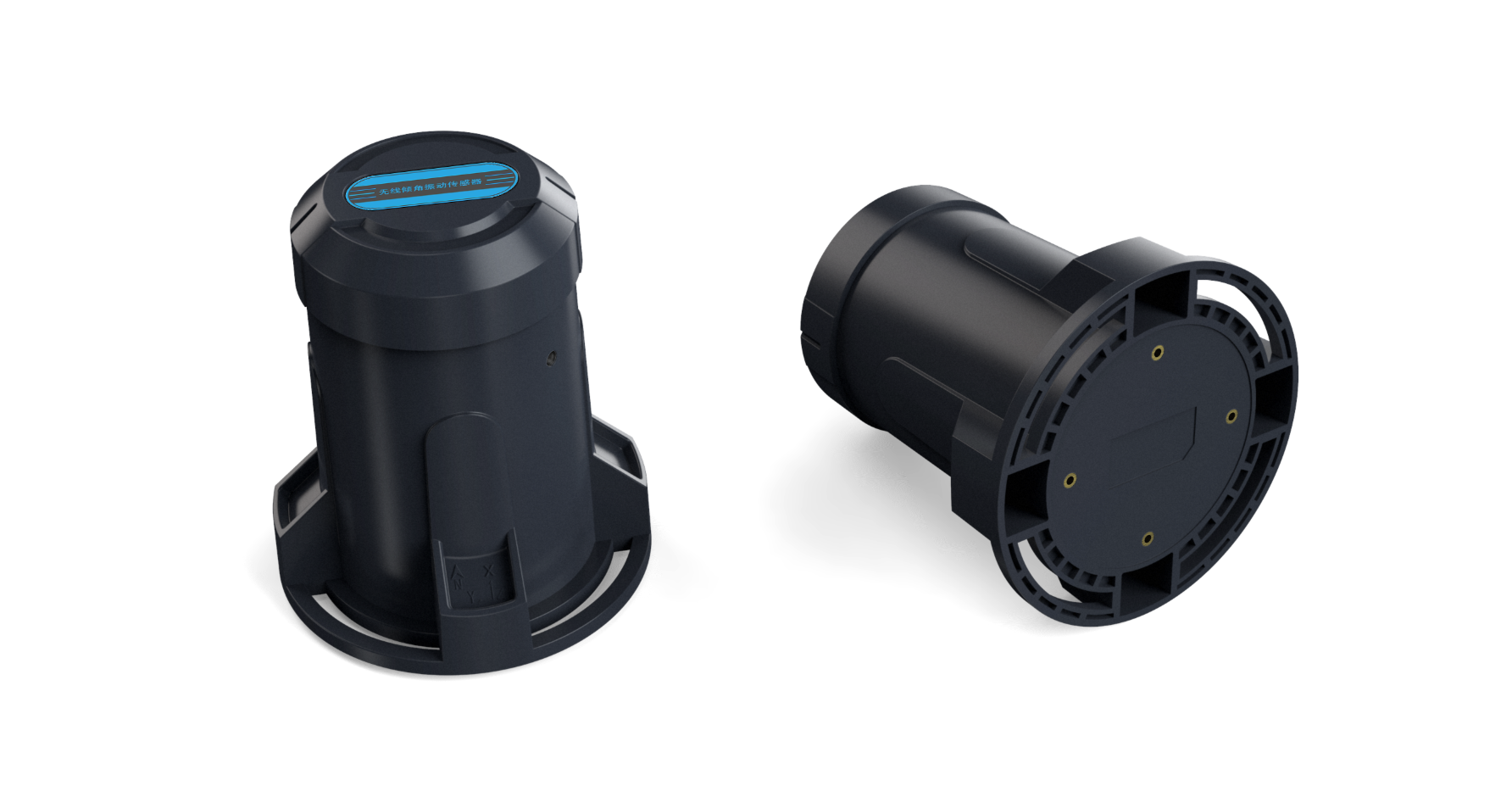

RT-1050 wireless tilt and vibration sensor, showing the upright housing and underside

Model RT-1050

Wireless Tilt & Vibration Sensor

Battery-powered structural tilt monitoring with wireless transmission. Tilt or vibration thresholds can trigger additional reports between scheduled readings.

  • Battery power and wireless reporting
  • Scheduled and threshold-triggered reports
View product

Crack Monitoring

Rod and draw-wire instruments for movement across cracks, joints and separated anchors.

RT-1080 rod-type wireless crackmeter installed across a structural crack

Model RT-1080

Wireless Crackmeter (Rod Type)

Rod-type crack measurement with movement-triggered reporting. Tilt sensing and tilt or acceleration triggers are optional.

  • 100, 200 and 500 mm ranges
  • Movement-triggered reports

Rod-type installation shown

View product
RT-1060 draw-wire wireless crackmeter installation diagram

Model RT-1060

Wireless Crackmeter (Draw-Wire)

Draw-wire crack measurement with an IP68-rated housing for submerged installations and threshold-triggered movement reports.

  • IP68 protection for the entire unit
  • Threshold-triggered reports

Wireless crackmeter installation diagram

View product

Rainfall & Soil Moisture

Rainfall and soil moisture measurements to compare with deformation records as site conditions change.

RT-1040 soil moisture and surface tilt sensor with a white probe and upper housing

Model RT-1040

Soil Moisture & Surface Tilt Sensor

Volumetric water content at multiple depths and surface tilt measurements for assessing changing slope conditions.

  • Volumetric water content at multiple depths
  • Surface tilt monitoring
View product

Blast Vibration

Dedicated waveform recording for assessing blast vibration at nearby structures.

RT-2001 blast vibration monitor and companion triaxial geophone

Model RT-2001

Blast Vibration Monitor

Battery-powered, event-triggered blast vibration recording, with 4G upload and optional LoRa Mesh relays.

  • Internal battery power
  • Event-triggered acquisition

Optional LoRa

View product

Data Acquisition

Data loggers with battery or external power, sensor interfaces and communications matched to the monitoring system.

RT-2000 data logger and connectors

Model RT-2000

Data Logger

An externally powered logger with 4G and Ethernet output, TCP Client or MQTT Client, and 256 Mbit storage for retrieval and retransmission.

  • External power and sensor connections
  • 256 Mbit storage with retrieval and retransmission
View product

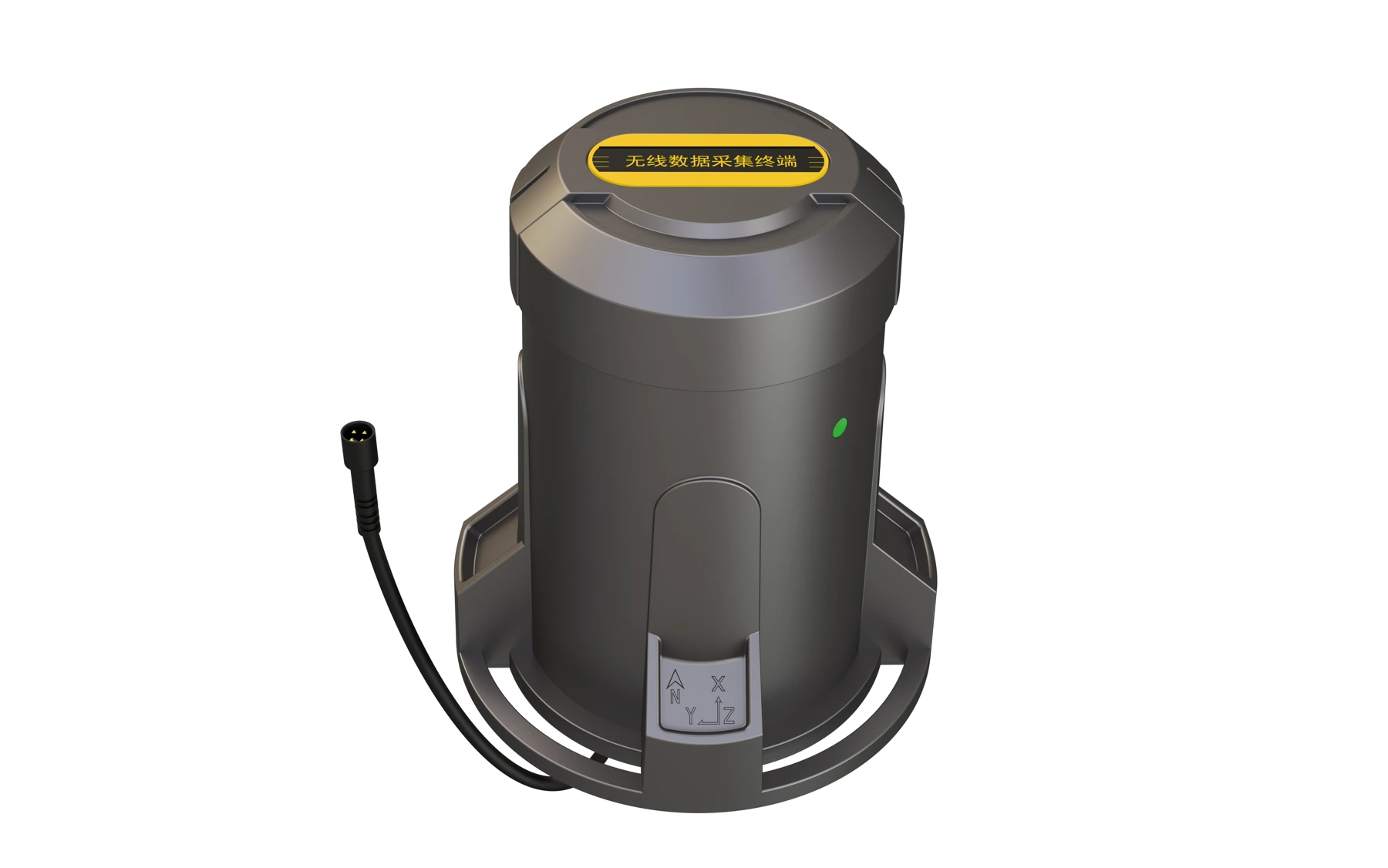

RT-1000 wireless data logger with an internal lithium thionyl chloride battery

Model RT-1000

Wireless Data Logger

Battery-powered logging and 4G upload for RT-1010, RT-1020 and other compatible sensors. Battery life exceeds five years at a two-hour acquisition and reporting cycle; IP68 protection requires no additional enclosure.

  • 5+ years at a two-hour reading/reporting cycle
  • IP68 protection; no additional enclosure
View product

Monitoring Software

Monitoring software for data review, instrument settings, configurable alerts and response records.

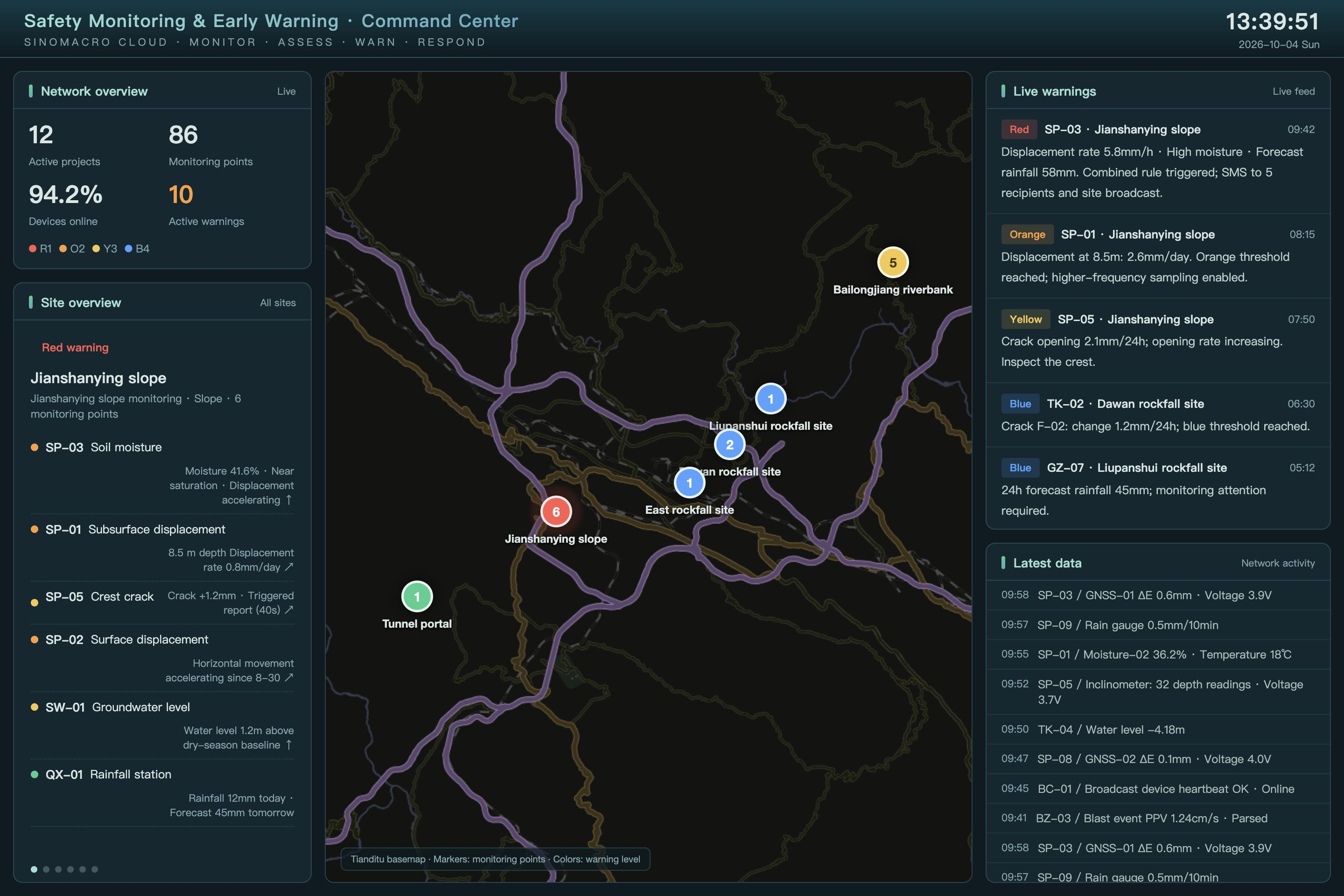

SINOMACRO Cloud dashboard showing a monitoring network, instrument status and alerts using simulated data

SINOMACRO Cloud

Monitoring Software

Monitoring data, project-specific alert rules and response records in one place, with notifications, acknowledgments and follow-up actions.

  • Multiple sensor types and configurable alerts
  • Acknowledgment and response records

Simulated data

View product

Integration Support

Sensor Modules for System Integration

Accelerometer Module

Model RT-3000

A sensor module for equipment manufacturers and engineers developing their own measurement systems.

Contact usView product

Planning a monitoring project?

Technical advice for your instrumentation needs

Contact us
