Model RT-3000Triaxial Accelerometer and Tilt Module

Processed motion and tilt data for OEM integration

The RT-3000 series provides processed acceleration, tilt and vibration measurements for OEM sensors and data loggers. Onboard processing calculates tilt, vibration frequency and amplitude for host access over TTL-level UART. RT-3001 and RT-3002 offer different tilt resolution and accuracy specifications.

0.01 mg
Acceleration resolution
0.01°
RT-3001 tilt accuracy
0.05°
RT-3002 tilt accuracy
UART
TTL-level digital interface

Benefits

Measurements and interrupts for the host device

01

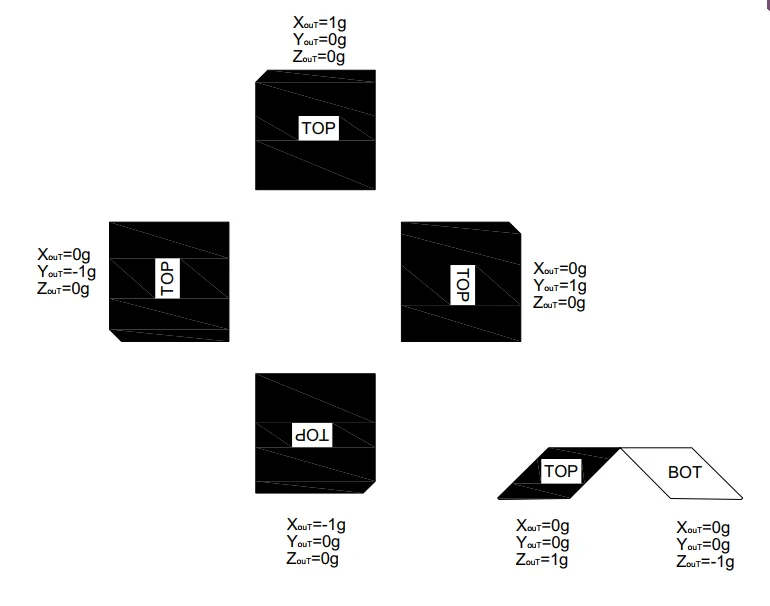

Two tilt performance options

Both versions cover ±90°. RT-3001 offers 0.0001° resolution and 0.01° accuracy; RT-3002 offers 0.001° resolution and 0.05° accuracy. The version is selected for the host device measurement requirements.

02

Processed measurement outputs

The integrated low-power MCU processes MEMS acceleration readings into tilt, vibration frequency and amplitude. The host can read these results directly, along with temperature and supply voltage.

03

Motion detection in sleep mode

Measurement mode samples internally at 2,000 Hz for angle and spectrum calculations. Sleep mode samples acceleration at 400 Hz for motion and stationary detection. The host wakes the module through WKUP to read full measurement results.

04

Event interrupts through INT

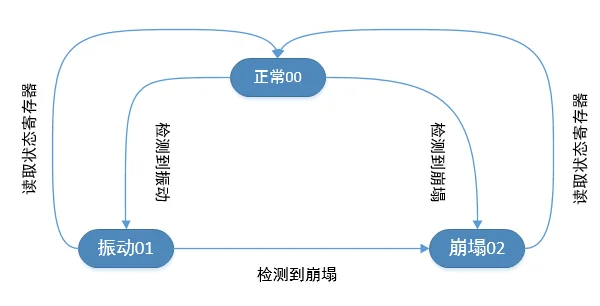

Configurable acceleration-change thresholds and durations support motion detection; free-fall detection is also available. An event interrupt signals the host through INT, followed by data access using Modbus over TTL-level UART.

Applications

Applications

Sensor OEM integration

Low-power data loggers

Motion and free-fall detection

Structural tilt and vibration monitoring

Specifications

RT-3000 Specifications

RT-3000 Specifications
Tilt by module version
RT-3001 tilt range±90°
RT-3001 tilt resolution0.0001°
RT-3001 tilt accuracy0.01°
RT-3002 tilt range±90°
RT-3002 tilt resolution0.001°
RT-3002 tilt accuracy0.05°
Shared measurements
Acceleration range±2,000 mg
Acceleration resolution0.01 mg
Acceleration accuracy1 mg
Vibration frequency range0–128 Hz
Vibration frequency resolution1 Hz
Vibration frequency accuracy1 Hz
Temperature range−40 to +85°C
Temperature resolution0.1°C
Temperature accuracy0.5°C
Power and host interface
Specification test conditionsT = 25°C; VDD = 3.3 V; 9,600 baud; default register settings
Supply voltage3.0–3.5 V; 3.3 V typical
Measurement-mode supply current3.0–3.6 mA; 3.2 mA typical
Serial interfaceUART; TTL-level TXD and RXD
Communication protocolModbus
Operating modesMeasurement and sleep; enters sleep mode by default at power-up
Internal sampling rate2,000 Hz in measurement mode; 400 Hz in sleep mode
Wake-up and interruptWKUP external wake-up input; INT event interrupt output
Operating temperature−40 to +85°C

Product support

Questions about this product?

Product data sheets and configuration details are available from our engineers.

Contact us

Frequently asked questions

Which module version should I select?

Both measure tilt over ±90°. Select RT-3001 for 0.0001° resolution and 0.01° accuracy, or RT-3002 for 0.001° resolution and 0.05° accuracy. Shared acceleration and other specifications appear in the table.

Can the module connect directly to an RS485 bus?

TXD and RXD use TTL-level UART. An RS485 system needs electrical conversion through the host or a suitable interface circuit.

Is 2,000 Hz the external data-output rate?

The 2,000 Hz value describes internal sampling in measurement mode. The host reads processed data through the communication protocol. UART output rate is a separate parameter.

What measurements remain active in sleep mode?

Sleep mode samples acceleration at 400 Hz for motion and stationary detection, while tilt and spectrum calculations stop. Wake the module and wait for the data-ready interrupt before reading the full measurement results.
