Wireless rainfall monitoring

Model RT-1090Wireless Tipping Bucket Rain Gauge

Rainfall records without external power

The RT-1090 is a wireless tipping-bucket rain gauge with stainless steel housing and ruby bearings. Its internal 76 Ah lithium thionyl chloride battery provides at least 5 years of operation with hourly 4G LTE Cat 1 reporting. LoRa communications and GPS positioning are optional.

RT-1090 stainless-steel tipping bucket rain gauge with wireless antennas
0.2 mm
Standard resolution; 0.1 / 0.5 mm options
Within ±2%
Measurement error
5+ years
Battery life with 4G reporting once every hour
4G LTE Cat 1
Standard communications; LoRa and GPS optional

Benefits

Tipping bucket measurement and wireless uploads

01

Tipping-bucket measurement

Each tip records a fixed rainfall increment. Standard resolution is 0.2 mm, with 0.1 mm and 0.5 mm options. The intensity measurement range is 0.01 to 4.0 mm/min.

02

Built-in battery and wireless communications

The built-in 76 Ah lithium thionyl chloride battery and standard 4G LTE Cat 1 communications remove the need for an external solar panel or data cable; LoRa is optional. Specified battery life is at least 5 years with hourly 4G reporting, with average current <0.22 mA at a 1-hour reporting interval.

03

Stainless steel housing and ruby bearings

The 304 stainless steel housing contains a tipping mechanism with ruby bearings. Measurement error remains within ±2% after 250,000 tipping cycles. The collector is 20 cm in diameter with a 45° rim angle.

04

Optional location data

Optional GPS positioning associates rainfall records with device coordinates in the project platform. The communication method is selected for network conditions at the site.

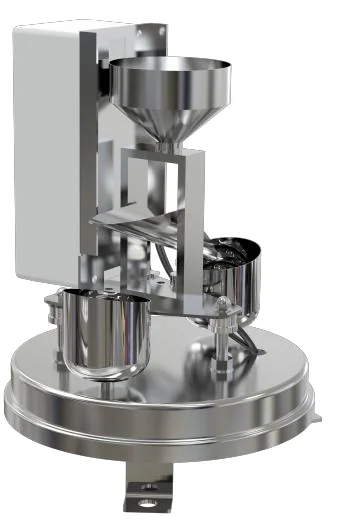

Internal tipping bucket, bearing and acquisition mechanism of the RT-1090
Internal tipping bucket, bearing and acquisition mechanism of the RT-1090

Applications

Applications

Geohazard rainfall monitoring

Hydrology

Agricultural irrigation

Forest-fire risk monitoring

Specifications

RT-1090 Specifications

RT-1090 Specifications
Rainfall measurement
Measurement parametersRainfall; device coordinates with optional GPS positioning
ResolutionStandard 0.2 mm; 0.1 mm and 0.5 mm options
Rainfall intensity range0.01 mm/min to 4.0 mm/min
Measurement errorWithin ±2%
Repeatability errorWithin ±1%
Tipping performanceMeasurement error remains within ±2% after 250,000 tipping cycles
Collector / rim angleØ20 cm / 45°
Communications, power and environment
CommunicationsStandard 4G LTE Cat 1; optional LoRa
Power supplyBuilt-in 76 Ah lithium thionyl chloride battery
Battery lifeAt least 5 years with hourly 4G reporting
Sleep current<0.04 mA
Average current<0.22 mA with a 1-hour reporting interval
PositioningGPS positioning (optional)
DimensionsHeight 550 mm; diameter Ø200 mm
Material / weight304 stainless steel / 5 kg
MTBF≥40,000 hours
Operating temperature-40°C to +85°C
ProtectionComplete device IP68
Lightning and electrostatic protection±60 kV / 600 W

Product support

Questions about this product?

Product data sheets and configuration details are available from our engineers.

Contact us

Frequently asked questions

Which rainfall resolutions are available?

The standard resolution is 0.2 mm. Choose the optional 0.1 mm or 0.5 mm version if required, and record the selected resolution in the order and project documentation.

Are LoRa and GPS included as standard?

4G LTE Cat 1 is standard. LoRa communications and GPS positioning are optional. Device coordinates are available when the GPS option is fitted.

Does the RT-1090 need solar power?

The built-in 76 Ah lithium thionyl chloride battery powers the device. Specified battery life is at least 5 years with hourly 4G reporting.
