Battery-powered wireless logger

Model RT-1000Wireless Data Logger

Borehole readings without external power

The RT-1000 is a battery-powered wireless data logger for RT-1010 arrays, RT-1020 inclinometers and other supported sensors. It stores readings locally and sends them over 4G. Its internal 76 Ah lithium thionyl chloride battery provides more than 5 years of operation at a two-hour acquisition and reporting cycle. The IP68 housing requires no additional protective enclosure.

RT-1000 wireless data logger rendering with a Chinese label
5+ years
Battery life at a two-hour acquisition and reporting cycle
76 Ah
Internal lithium thionyl chloride battery
IP68
Housing protection; no additional enclosure required
4G
Wireless data transmission

Data Acquisition

Acquisition, storage and 4G reporting

01

Displacement and tilt acquisition

The logger reads RT-1010, RT-1020 and other supported sensors configured for the required measurements.

02

Local storage and 4G upload

Readings are stored locally and sent over 4G. Stored records are retransmitted automatically when an interrupted connection returns.

03

Remote configuration

SINOMACRO Cloud provides access to readings and supported logger settings for commissioning and maintenance.

Installation

Mount, connect and check the readings

Internal power and a sealed housing reduce the equipment required at the monitoring point.

  1. 01

    Secure the logger

    Use a mounting bracket to secure the logger to a wall, pole or other suitable location.

  2. 02

    Connect the sensors

    Connect the logger and sensor cables, check connector seals and secure the wiring.

  3. 03

    Verify communications and data

    Test communications at a location with cellular coverage, then check sensor data on the platform.

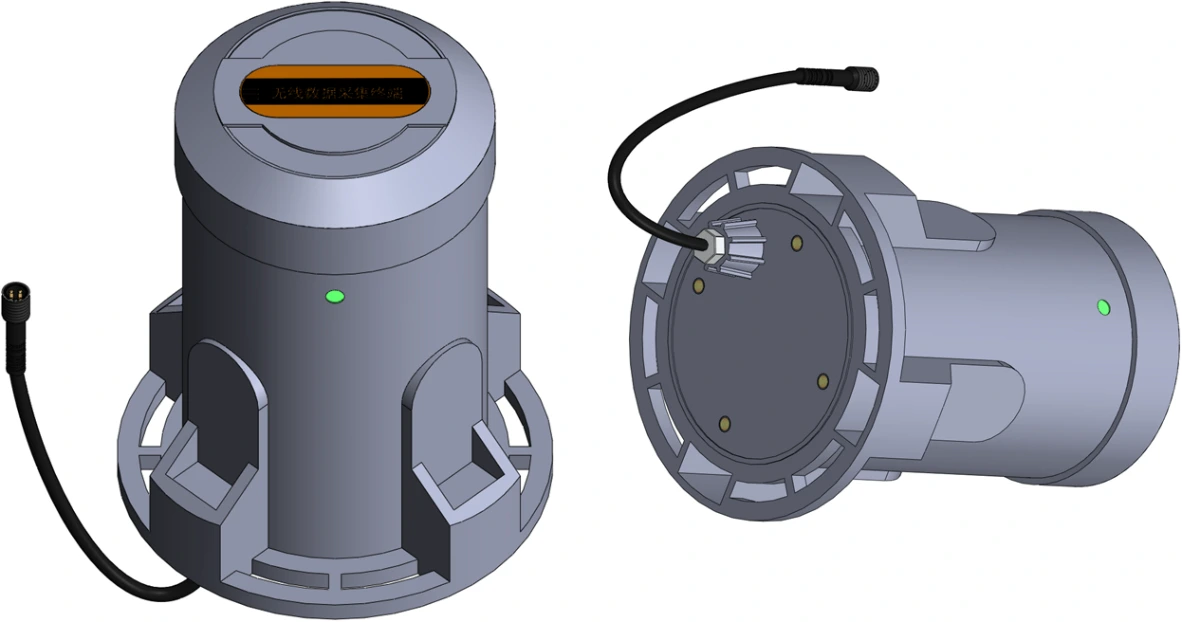

Two views of the RT-1000 wireless data logger with a Chinese label
Two views of the RT-1000 wireless data logger with a Chinese label

Benefits

Less equipment to install and maintain

Built-in power and IP68 protection reduce the equipment needed at each monitoring point.

01

More than 5 years on the internal battery

At a two-hour acquisition and reporting cycle, the internal 76 Ah lithium thionyl chloride battery provides more than 5 years of operation.

02

Internal power for remote sites

Internal battery power removes the need for solar panels, a charge controller or external power wiring, reducing field equipment and maintenance.

03

IP68 logger housing

The IP68 housing provides outdoor protection without an additional enclosure.

04

Simple sensor connection

Sensor acquisition, storage, battery power and wireless transmission are integrated in the logger, with cable connections to RT-1010, RT-1020 or other supported sensors.

Applications

Applications

Long-term monitoring at sites without mains power

Subsurface displacement monitoring for slopes and dams

Borehole tilt and multipoint settlement monitoring

Specifications

RT-1000 Specifications

RT-1000 Specifications
Acquisition and transmission
Data functionsSensor data acquisition and local storage
Internal storage64 Mbit
Compatible productsRT-1010 Array Displacement Meter, RT-1020 In-Place Inclinometer, RT-1021 Multipoint Settlement Sensor and RT-1030 3D Tilt & Vibration Sensor; configured for the project
Wireless communications4G
Reconnection handlingAutomatic data retransmission after connectivity is restored
Platform functionsData storage and viewing, remote configuration and maintenance
Communication protocolMQTT v3.1.1
Power and protection
Power supplyInternal lithium thionyl chloride battery; no external power required
Battery capacity76 Ah
Battery lifeMore than 5 years with a 76 Ah battery and a two-hour acquisition and reporting cycle
Solar power equipmentNo solar panels, charge controller or external power wiring required
ProtectionIP68; no additional protective enclosure required for the logger
Housing materialHigh-strength, aging-resistant engineering polyurethane
Operating temperature-20°C to +85°C

Product support

Questions about this product?

Product data sheets and configuration details are available from our engineers.

Contact us

Frequently asked questions

Which sensors can the RT-1000 read?

The RT-1000 reads the RT-1010 Array Displacement Meter, RT-1020 In-Place Inclinometer, RT-1021 Multipoint Settlement Sensor and RT-1030 3D Tilt & Vibration Sensor. The sensor count, interfaces and acquisition settings must suit the connected instruments.

What does the 5-year battery specification assume?

The specification uses the internal 76 Ah lithium thionyl chloride battery and a two-hour acquisition and reporting cycle. Higher acquisition rates and different sensor configurations require a separate battery-life assessment.

Does it require external or solar power?

The internal lithium thionyl chloride battery powers the logger. No external supply, solar panel, charge controller or external power wiring is required.

Is a protective enclosure required?

The logger has IP68 protection and needs no additional protective enclosure. Secure it, connect the sensor and seal the connectors as specified.

How is the logger installed?

Bracket-mount the logger on a wall, pole or other suitable support at a location with cellular coverage. Connect the sensor cable, test communications and check the readings on the platform.

What happens when connectivity is interrupted?

Built-in 64 Mbit storage retains monitoring data during interruptions. The logger automatically retransmits stored data when connectivity is restored.
