Dam and Hydropower Monitoring

Measure internal displacement, settlement and local response in dams, with groundwater and environmental records for construction and operational assessment.

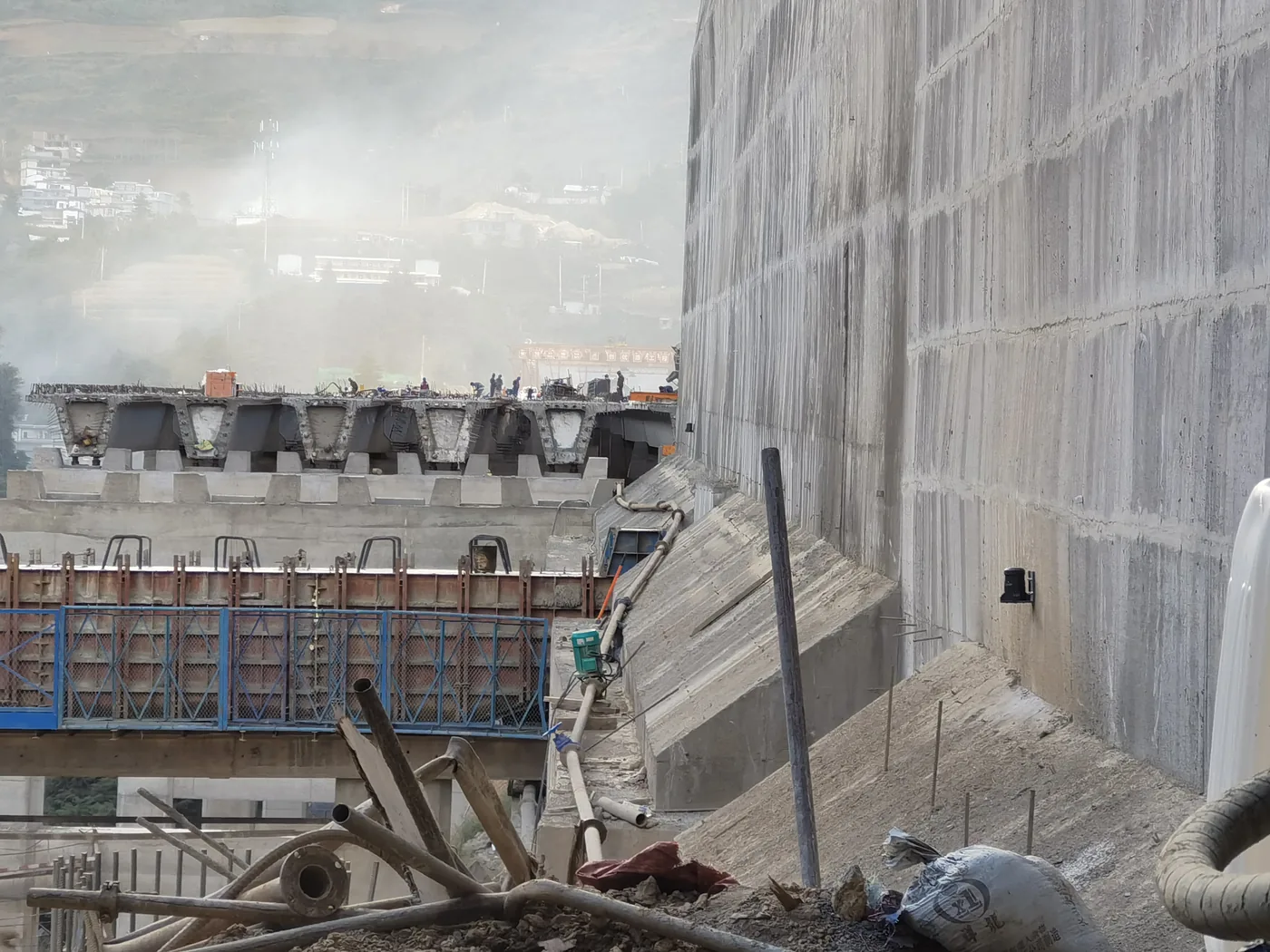

Dam and Hydropower Monitoring
Typical layout. Instrument locations are set in the project design.

Follow dam behavior through construction and operation

Filling, compaction and changes in reservoir level can affect deformation and settlement within a dam. Monitoring needs to capture this response at the specified sections and critical zones, with references that allow measurements to be compared as construction and operation progress.

The instrument layout should follow the dam design and the behavior being investigated. Internal displacement profiles, settlement measurements and local observations each answer a different engineering question.

What to measure

  • Three-dimensional displacement and settlement at multiple depths within the dam
  • Tilt at selected depths and local tilt and vibration
  • Groundwater level, water temperature and near-surface soil moisture
  • Measurement trends alongside construction stages and reservoir operation

The RT-1010 Array Displacement Meter measures deformation along a connected sensor string. Optional components can add groundwater level or settlement measurements at selected depths. The RT-1020 In-Place Inclinometer measures tilt at selected depths.

The RT-1030 supports local tilt and vibration measurements. The RT-1040 combines near-surface soil moisture and tilt measurements. The monitoring design determines which observations are needed at each section.

Installation notes

Coordinate sensor routes, protective conduit, junction boxes and data loggers with filling and compaction. Establish baseline readings and installation records before access is restricted. Where continuous power or communications are unavailable, specify suitable low-power equipment, local storage and scheduled field retrieval.

Frequently asked questions

Can one RT-1010 borehole measure displacement and groundwater?

Yes. Optional components can add groundwater level, water temperature or settlement at multiple depths to the same borehole as displacement, reducing duplicate drilling. The required measurements determine the supplied configuration.
