Hekoucun Reservoir, Jiyuan, Henan

Displacement and Settlement Monitoring at Hekoucun Reservoir

A dam-crest borehole combined a 138 m RT-1010D Array Displacement Meter with 23 settlement monitoring units to measure deformation at multiple depths.

Field photograph from Hekoucun Reservoir, Jiyuan, Henan

At a glance

Project detail Monitoring arrangement
Location Hekoucun Reservoir, Jiyuan, Henan
Asset Dam-crest borehole
Instruments 138 m RT-1010D Array Displacement Meter and 23 settlement monitoring units
Measurements Horizontal displacement, settlement, tilt and temperature at multiple depths

Scope

Hekoucun Reservoir is at the outlet of the Qin River canyon near Jiyuan, Henan. The project used a dam-crest borehole to measure horizontal displacement and settlement at depth.

Installation

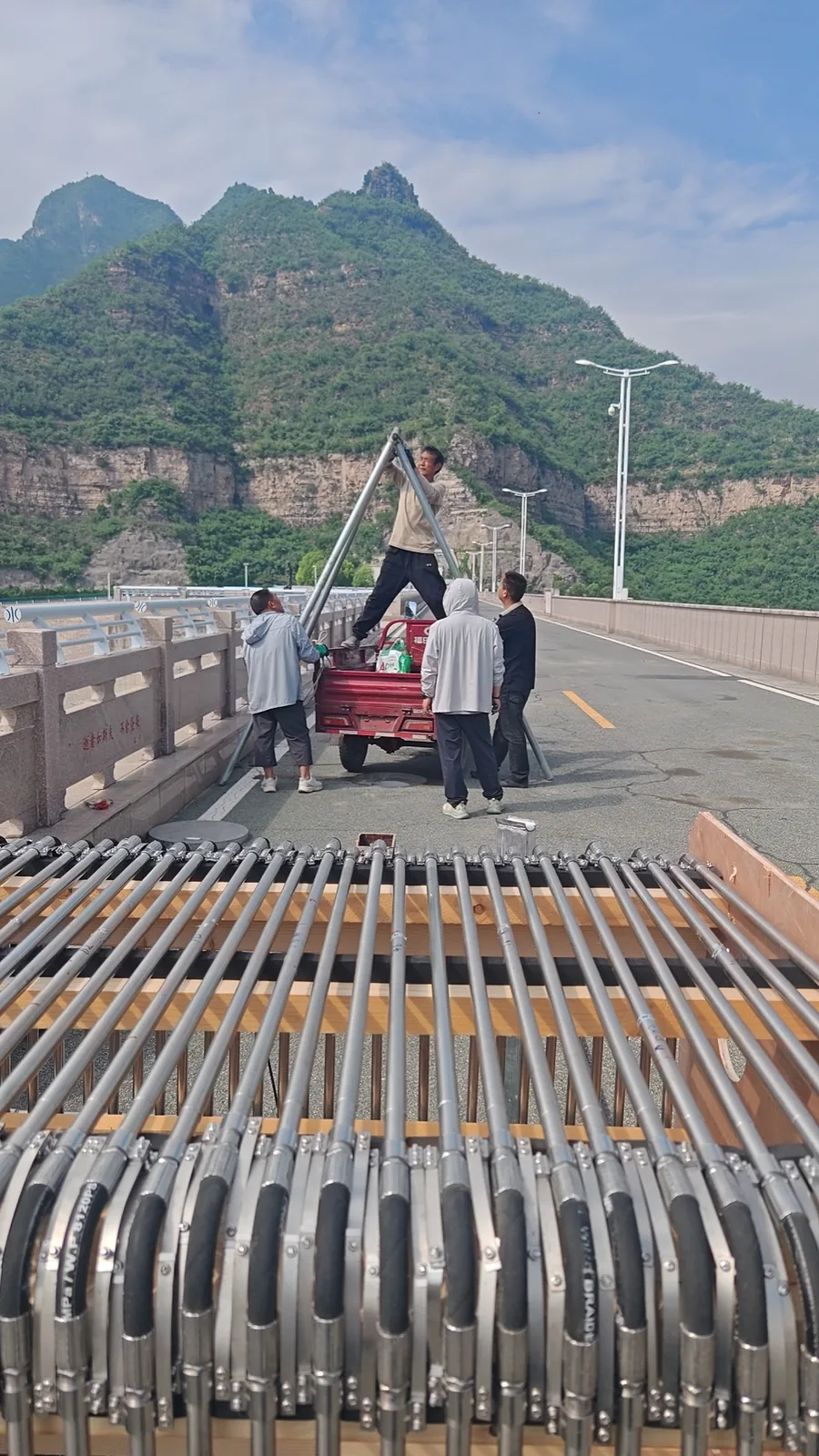

A 138 m RT-1010D Array Displacement Meter was installed with 23 settlement monitoring units. The connected segments were assembled on site and lowered gradually using a support frame.

The installation sequence covered delivery inspection, borehole checks, sensor-string assembly, lowering and orientation adjustment.

Results

After commissioning, the installation measured horizontal displacement, settlement, tilt and temperature at multiple depths. Combining these measurements in the same borehole reduced duplicate drilling and installation work.
